Polycarbonate Sheets & Aluminum Alloy Frames: Ideal Combination for Villa Carports and Awnings

Villa canopies are upgraded versions of ordinary awnings. Ordinary steel frames are replaced with aluminum alloy frames, while standard covering panels are upgraded to double-sided UV-coated anti-aging polycarbonate sheets. The double-sided UV coating enables the sheets to resist aging for up to 15 years. Common colors of polycarbonate sheets for villa canopies include transparent, brown, light gray and dark gray. The structure is concise and straightforward. Thanks to professional design, manufacturing procedures and interactive assembly mechanisms, the production cycle of such structures is greatly shortened, featuring flexible assembled joint nodes.

Polycarbonate sheets boast high strength, outstanding safety performance and superior impact resistance, eliminating the risk of shattering like glass. The aluminum alloy frames are finished with electrostatic powder spraying, delivering a service life of over 15 years. Their weight is merely one-tenth of ordinary steel roofing. Compared with steel awnings, aluminum alloy canopies offer stable performance and a long service life. The structural design of aluminum alloy canopies can withstand heavy loads under harsh weather conditions, whereas conventional awnings suffer severe damage and pose safety hazards. Years of practical application have proven aluminum alloy canopies safe and reliable.

The sheets feature favorable elastic modulus and bending performance, allowing free arc bending to form curved canopy shapes—an advantage glass cannot match.

The aluminum alloy canopy operates stably within a temperature range of -40°C to 120°C. It achieves self-cleaning with rainwater and requires minimal manual maintenance.

Featuring high weather resistance, the high-strength aluminum alloy frames have excellent anti-aging and rust-proof properties. Special surface treatments further extend the canopy’s service life and reduce UV oxidation for superior weather resistance. The sealing strips are made of high-quality anti-aging EPDM rubber, while connectors and sealing fittings adopt anti-aging ABS engineering plastics. Fasteners are 304 stainless steel screws matched with special rubber caps for attractive appearance and long-term durability, supporting over 15 years of effective use.

The polycarbonate sheet top blocks more than 90% of ultraviolet rays and insulates heat, preventing sharp temperature rises under the canopy in hot weather. It also blocks industrial dust, fallen leaves and bird droppings suspended in the air. The integrated system of full aluminum alloy profiles and polycarbonate sheets can bear 48 cm of snow load and withstand wind speeds of 52 m/s, significantly boosting wind and snow resistance.

Exquisitely designed and manufactured aluminum alloy carports outperform traditional carports with modern design concepts, reasonable structures, unique elegant shapes and smooth, beautiful overall outlines. Custom color matching systems for aluminum frames and polycarbonate sheet tops allow harmonious integration with vehicles, creating a comfortable shelter for cars.

Equipped with professional noise reduction structures, aluminum alloy canopies deliver effective sound insulation and noise reduction, especially effective on rainy days. They serve as an optimal choice for parking lots and waiting shelters, lowering noise disturbance to surrounding residents.

With the advancement of aluminum alloy profiles and shifting market demands, aluminum alloy canopies will incorporate more superior functional features to meet diverse needs of parking lots and waiting areas.

Brief Introduction to Polycarbonate Sheet (Solid Polycarbonate Sheet)

Also known as solid polycarbonate panels, polycarbonate sheets resemble glass in appearance with light transmittance above 90%. Made of polycarbonate, they feature high impact strength and anti-shatter performance. Double-sided UV coatings greatly enhance anti-aging capacity and extend service life. Applications: machine tool explosion-proof sight windows, carports, awnings, safety glazing, advertising panels.

PC Corrugated Sheets (Solid Corrugated Sheet)

Corrugated sheets are manufactured from polycarbonate raw materials mainly sourced from Covestro and Sabic. Their surface is covered with 50-micron anti-UV coatings to prolong service life. They provide higher light transmittance than traditional FRP daylighting sheets, with customizable colors and light transmission rates as required. Featuring simple overlapping installation, they are widely used in architectural daylighting, carports, awnings, steel structure roofing and daylighting belts, enclosure walls.

Double-Wall Polycarbonate Hollow Sheet

Double-wall hollow sheets, also called double-layer polycarbonate hollow panels, are produced with polycarbonate as the core raw material and coated with 50-micron UV protection layers to slow aging and extend service life. Main applications: greenhouses, various carports and awnings, daylighting corridors.

U-Lock Polycarbonate Sheet Daylighting Canopy System

U-lock polycarbonate sheets are produced from pure Covestro and Sabic polycarbonate without recycled materials, coated with 50-micron anti-UV layers for extended service life and covered by a 10-year quality warranty. Vertical edges of U-lock sheets are fastened with dedicated fittings for outstanding waterproof performance. No direct screw drilling on sheet surfaces avoids cracking caused by thermal expansion and contraction, making them suitable for large-span awnings. Available in a wide range of customizable colors and light transmittance levels, they also provide thermal insulation effects.

Special EPDM Waterproof Gaskets for Polycarbonate Sheet

Composed of galvanized iron sheets and EPDM rubber pads, these gaskets are available in standard white and optional blue, with diameters of 20 mm and 30 mm. Designed for screws used to install polycarbonate sheets, matched locking caps prevent rainwater infiltration while EPDM cushions buffer pressure to avoid sheet deformation during installation.

Dual-Color Polycarbonate Sheet

Also named multi-color polycarbonate sheets, dual-color sheets are produced via twin-screw co-extrusion. The main screw feeds base raw materials while the auxiliary screw supplies color masterbatch for surface layers, which are co-extruded through molds. This process is more commonly applied to thick sheets of 16–25 mm, creating a crystal transparent visual effect, yet compatible with all standard sheet thicknesses. Main applications: indoor partitions, roofing daylighting, carports and awnings.

Four-Wall Polycarbonate Hollow Sheet

Four-wall hollow sheets add extra thermal insulation layers on the basis of double-wall sheets, also known as multi-layer hollow panels. Made of polycarbonate with 50-micron UV coating to resist aging, they are ideal for greenhouses in cold northern regions, various carports, awnings and daylighting corridors.

S-Shaped Polycarbonate Sheets (Snake-Type Sheet)

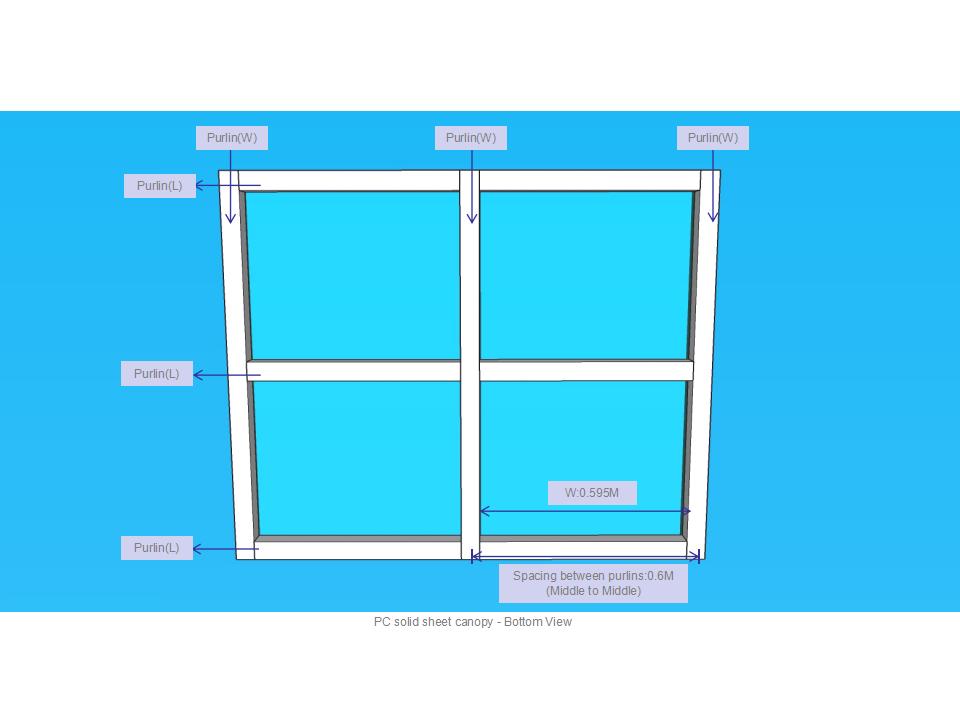

S-shaped sheets, or snake-type panels, adopt an optimized profile to boost rigidity by 20% without increasing weight. Standard purlin spacing of 0.8 m can be expanded to 1 m for S-shaped sheets while maintaining equal wind and snow load resistance. Manufactured from polycarbonate with 50-micron anti-UV coatings for a 10-year outdoor service life, they are widely used in greenhouses, carports, awnings and daylighting passages.

H-Shape Polycarbonate Installation Profile

Specialized accessories for polycarbonate hollow sheet installation, including H-joint profiles, upper-lower connecting strips and U-edge closing strips, all crafted from solid polycarbonate for long service life. H-joint profiles and connecting strips connect two adjacent sheets, while U-edge strips seal hollow sheet ends to block rainwater and dust infiltration, preserving aesthetics and performance.
