How to Select the Thickness of Polycarbonate Sheet: A Comprehensive Application Guide

Multi‑functional Solutions from Construction to Industry

1. Basic Understanding and Classification of Polycarbonate Sheet

1.1 Definition and Properties of Polycarbonate Sheet

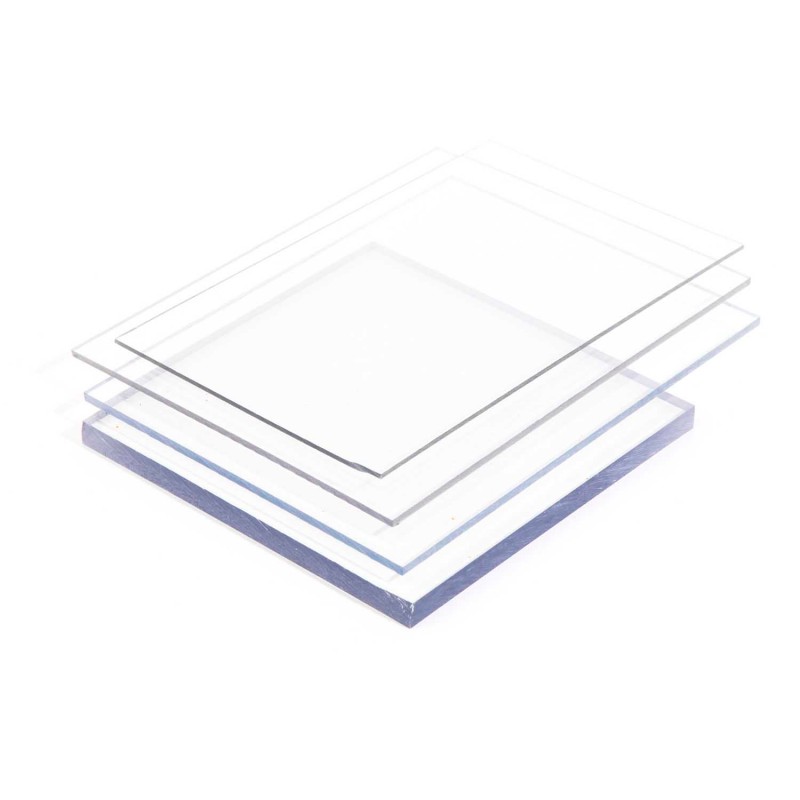

Polycarbonate Sheet is a solid panel manufactured via extrusion process with polycarbonate as the main raw material. It features high strength, high light transmittance, excellent impact resistance and great weather resistance, earning it the nickname “unbreakable glass”. Different from hollow polycarbonate multi‑wall sheets, polycarbonate sheet adopts a solid single‑layer structure and delivers superior strength and impact resistance. Its core properties are shown below:

Item	Parameter Description
Light transmittance	88%‑92% (slightly decreasing with increased thickness); transparent grade is comparable to glass
Impact resistance	250‑300 times that of ordinary glass; also known as “transparent steel plate”
Weather resistance	Stable physical performance within ‑40℃ ~ 120℃
Flame retardancy	Reaches UL94 V‑0 flame‑retardant standard
Sound insulation	Significant noise‑reduction effect; 8 mm polycarbonate sheet provides 28‑decibel sound attenuation

1.2 Main Types of Polycarbonate Sheet

According to functional features, polycarbonate sheet can be divided into the following categories:

Type	Feature Description	Core Advantages
General‑purpose Polycarbonate Sheet	Basic‑performance version without special functional coating	Cost‑effective and widely applicable
Flame‑retardant Polycarbonate Sheet	UL94 V‑0 certified; self‑extinguishes upon removal of flame	High safety for fire‑risk locations
UV‑protected Polycarbonate Sheet	Double‑sided UV coating; 10‑year quality guarantee; high light‑transmittance retention	Anti‑aging; extends outdoor service life

1.3 Thickness System and Selection Principles for Polycarbonate Sheet

Polycarbonate Sheet covers a wide thickness range from 0.125 mm to 25 mm, grouped as follows:

Thickness Range	Category	Application Scenarios
0.125‑3 mm	Thin‑gauge sheet	Advertising light boxes, electronic‑product protective covers, display racks, interior decoration, etc.
4‑6 mm	Standard‑gauge sheet	Building daylighting roofs, carports, noise barriers, greenhouses, etc.
8‑12 mm	Heavy‑gauge sheet	Riot shields, industrial protective covers, high‑load structural components, etc.
Above 15 mm	Extra‑heavy‑gauge sheet	Special industrial uses, heavy‑duty protection, bullet‑resistant applications, etc.

Thickness‑selection principle: comprehensively evaluate load‑bearing requirements, impact‑resistance demands and budget for specific scenarios. Generally, impact strength rises by approximately 15% for every additional 1 mm of thickness.

2. Diverse Application Fields of General‑purpose Polycarbonate Sheet

2.1 Construction and Decoration

Daylighting systems

• Daylighting roofs & skylights: 3‑6 mm polycarbonate sheet is ideal for commercial‑building daylighting roofs and skylights with good light transmission and safety.
• Curtain walls & partitions: 2‑4 mm sheets for internal and external architectural decoration and modern‑building curtain walls balancing aesthetics and safety.
• Canopies & sunshades: 4‑6 mm sheets widely used for canopies at subway entrances, parking lots, malls, pavilions and other sites.

Decorative applications

• Interior screens: 1.2‑2 mm thin polycarbonate sheet for interior screens with favorable light transmission and safety.
• Shower‑room partitions: 2‑4 mm sheets feature good water resistance for humid bathroom environments.
• Furniture & cabinet doors: 2‑4 mm sheets for furniture and kitchen‑cabinet doors combining decoration and practicality.

2.2 Advertising and Display

Advertising media

• Light‑box panels: 1‑3 mm polycarbonate sheet serves as ideal panels for advertising light boxes with uniform light output.
• Signage & notice boards: 2‑4 mm sheets for outdoor billboards and notice boards with strong weather resistance.
• Light‑box advertising & exhibition setup: applicable for various advertising light‑box and exhibition layouts.

Signage systems

• Commercial signs: 1‑3 mm sheets for commercial signage with good light transmission and durability.
• Traffic signs: 3‑5 mm sheets for traffic signs with excellent weather and impact resistance.

2.3 Industrial and Safety Protection

Industrial protection

• Machine guards: 4‑6 mm polycarbonate sheet for industrial‑equipment protective covers to safeguard operators.
• Electronic‑equipment housings: 1‑3 mm lightweight, impact‑resistant sheets for electronic‑product protective casings.
• Instrument panels: 1‑3 mm sheets for instrument panels featuring good light transmission and easy processing.

Safety protection

• Bullet‑resistant glazing: sheets thicker than 12 mm achieve bullet‑resistant grades for bank anti‑theft counters and jewellery‑shop anti‑burglary windows.
• Riot shields: 8‑12 mm polycarbonate sheet delivers outstanding impact performance for riot‑shield fabrication.
• Safety daylighting materials for airports and factories: balances light transmission and safety.

2.4 Transportation

Vehicles

• Motorcycle windshields: 3‑5 mm polycarbonate sheet for motorcycle windshields with impact resistance and high light transmittance.
• Golf‑cart & electric‑vehicle windshields: 3‑5 mm sheets for golf‑cart and electric‑vehicle windshields.
• Automotive sunroofs: 2‑4 mm lightweight, safe sheets for vehicle sunroofs.

Public‑transport facilities

• Subway & station facilities: 4‑6 mm sheets for subway and station structures, impact‑resistant and easy‑to‑clean.
• Highway noise‑barrier auxiliary material: 4‑6 mm sheets for highway noise‑reduction barriers.

3. Special Application Fields of Flame‑retardant Polycarbonate Sheet

3.1 Building Fire‑safety Zoning and Safety Installations

Fire‑safety partitions and separation

• Fire‑resistant partitions: 4‑6 mm flame‑retardant polycarbonate sheet for internal building partitions to satisfy fire‑zoning requirements.
• Emergency‑exit partitions: 5‑8 mm sheets for passage partitions ensuring safe evacuation during fire incidents.
• Fire‑door viewing windows: 3‑5 mm sheets for observation windows on fire‑rated doors combining light transmission and fire‑safety performance.

Public‑building safety installations

• Safety facilities in hospitals and schools: 4‑6 mm sheets complying with fire‑safety standards.
• Safety baffles in malls and theatres: 5‑8 mm sheets improving evacuation safety for high‑occupancy venues.

3.2 Industrial and Power‑facility Applications

Industrial safety protection

• Observation windows for explosion‑hazard zones: 8‑10 mm flame‑retardant polycarbonate sheet for viewing windows in explosion‑risk areas meeting explosion‑protection specifications.
• Chemical‑equipment viewing windows: 6‑8 mm sheets for chemical‑equipment observation windows with corrosion‑resistance and fire‑retardancy.
• Partitions for underground and explosion‑prone environments: 10‑12 mm sheets for underground facilities and locations with explosion hazards.

Power‑industry facilities

• Distribution‑box viewing windows: 3‑5 mm flame‑retardant sheets for distribution‑box observation windows.
• Electrical‑equipment protective covers: 4‑6 mm sheets for electrical‑equipment guards limiting fire spread from electrical faults.

3.3 Interior Decoration and Safety for Transportation Vehicles

Public‑transport vehicles

• Metro & light‑rail carriage interiors: 2‑4 mm flame‑retardant polycarbonate sheet complying with rail‑transit fire‑safety standards.
• Bus interior panels: 2‑4 mm lightweight, fire‑resistant sheets for bus interior linings.
• Marine interior fit‑out: 3‑5 mm sheets for vessel interiors satisfying maritime fire‑safety requirements.

Aerospace

• Aircraft interior trim: 0.5‑2 mm ultra‑thin flame‑retardant sheets for aircraft interior components with low weight and good fire resistance.
• Spacecraft viewing windows: specially modified flame‑retardant polycarbonate sheet tolerating extreme temperature fluctuations.

4. Acoustic‑application Fields of Sound‑insulating Polycarbonate Sheet

4.1 Traffic‑noise‑control Installations

Road noise barriers

Thickness of Polycarbonate Sheet	Sound‑attenuation Performance	Typical Application
8 mm	28 dB attenuation	Highway noise barriers
10 mm	33 dB attenuation	Railway & urban viaduct noise barriers
12 mm	36 dB attenuation	Railway & urban viaduct noise barriers

• Metro & light‑rail noise‑control facilities: 8‑12 mm sound‑insulating sheets mitigating noise impact on surrounding communities.

Transport hubs

• Airport noise‑reduction facilities: 10‑12 mm sheets reducing noise from aircraft take‑off and landing.
• Railway‑station noise barriers: 8‑10 mm sheets lowering operational noise from trains.

4.2 Building Sound Insulation and Acoustic Treatment

Building sound insulation

• Exterior‑wall sound insulation: 6‑8 mm sound‑insulating polycarbonate sheet improving building acoustic performance.
• Indoor sound‑insulating partitions: 4‑6 mm sheets creating quiet indoor environments.

Special acoustic spaces

• Recording & broadcast studios: 8‑10 mm sheets delivering favorable acoustic conditions.
• Concert halls & theatres: 6‑8 mm sheets optimizing acoustic effects.
• Conference & multi‑function halls: 4‑6 mm sheets enhancing meeting‑space acoustic performance.

4.3 Industrial Noise‑control Applications

Factory‑building sound insulation

• Factory noise‑reduction walls: 8‑10 mm sound‑insulating polycarbonate sheet for factory noise barriers.
• Equipment acoustic enclosures: 6‑8 mm sheets for noise‑control hoods over industrial machinery.
• Generator‑room noise treatment: 10‑12 mm sheets reducing generator‑set noise.

Special industrial environments

• Boiler & air‑conditioning plant rooms: 8‑10 mm sheets mitigating mechanical noise.
• Factory‑control‑room partitions: 4‑6 mm sheets building quiet working environments for control‑station operators.

5. Outdoor‑application Fields of UV‑protected Polycarbonate Sheet

5.1 Building Daylighting and Shading Systems

Daylighting systems

• Building daylighting roofs: 4‑6 mm UV‑protected polycarbonate sheet with UV‑blocking coating to prolong service life.
• Skylights & roof windows: 3‑5 mm sheets combining good light transmission and ultraviolet resistance.
• Glass curtain walls: 3‑6 mm sheets shielding interiors from ultraviolet radiation.

Shading systems

• Sunshades & canopies: 4‑6 mm sheets for outdoor canopies offering both shading and light transmission.
• Carport shading structures: 5‑8 mm sheets shielding vehicles against UV damage.
• Balcony & terrace sunshades: 3‑5 mm sheets lowering indoor temperatures.

5.2 Agriculture and Horticulture

Agricultural greenhouses

• Modern greenhouse cladding: 4‑6 mm UV‑protected polycarbonate sheet is ideal covering material with high light‑transmittance and thermal‑insulation performance.
• Plant‑growth chambers: 3‑4 mm sheets providing suitable lighting conditions.
• Vertical‑farm partitions & cladding: 2‑4 mm sheets optimizing growing conditions for crops.

Horticultural installations

• Flower‑cultivation facilities: 3‑5 mm sheets protecting flowers from ultraviolet damage.
• Nursery & seedling‑bed cladding: 2‑4 mm sheets maintaining proper temperature‑humidity for seedling raising.

5.3 Outdoor Advertising and Display

Outdoor advertising

• Large‑size billboards: 3‑5 mm UV‑protected polycarbonate sheet with superior weather‑ and UV‑resistance.
• Outdoor light‑box advertising: 2‑4 mm sheets preventing advertisement print from UV‑induced fading.
• Outdoor signs & direction boards: 3‑5 mm sheets extending service life of outdoor signage.

Exhibition installations

• Outdoor display racks: 3‑5 mm sheets with anti‑UV and anti‑impact properties.
• Outdoor exhibition facilities: 2‑4 mm sheets protecting exhibits from ultraviolet radiation.

5.4 Special‑purpose Outdoor Scenarios

Leisure facilities

• Swimming‑pool & water‑park structures: 4‑6 mm UV‑protected polycarbonate sheet with UV‑resistance and waterproof performance.
• Stadium daylighting roofs: 5‑8 mm sheets supplying ample natural illumination.
• Park & square installations: 3‑5 mm sheets for pavilions and sun‑shelters in public parks and plazas.

Cultural‑heritage protection

• Cultural‑relic protective hoods: specially treated UV‑protected polycarbonate sheet shielding relics from ultraviolet deterioration.
• Museum outdoor exhibits: 3‑5 mm sheets protecting outdoor museum displays.

6. Matching‑guide: Thickness Selection for Polycarbonate Sheet and Application Scenarios

6.1 Application Scenarios Grouped by Thickness

Thickness	Sub‑range	Main Application Scenarios
Thin‑gauge (1‑3 mm)	1‑2 mm	Advertising light boxes, electronic‑product protective covers, display racks, interior decorative panels, instrument panels, small‑size display racks, etc.
	2‑3 mm	Light‑box panels, small‑size signboards, indoor partitions, furniture cabinet doors, automotive sunroofs, motorcycle windshields, etc.
Medium‑gauge (4‑8 mm)	4‑6 mm	Building daylighting roofs, carports, noise barriers, machine guards, outdoor billboards, agricultural greenhouses, swimming‑pool facilities, etc.
	6‑8 mm	Large‑span daylighting roofs, factory‑building daylighting, highway noise barriers, indoor‑outdoor acoustic partitions, stadium daylighting roofs, etc.
Heavy‑gauge (≥10 mm)	10‑12 mm	Riot shields, industrial heavy‑duty guards, high‑load structural components, bullet‑resistant glazing, large‑scale noise barriers, special‑purpose industrial components, etc.
	>12 mm	Special‑industrial applications, heavy‑duty impact‑resistant protection, bullet‑resistant installations, special building structural members, etc.

6.2 Thickness Recommendations by Application Scenario

Application Category	Scenario	Recommended Thickness
Construction daylighting & decoration	Small‑size daylighting roofs & skylights	4‑6 mm
	Medium‑size daylighting roofs & skylights	6‑8 mm
	Large‑size daylighting roofs & skylights	8‑12 mm
	Indoor curtain walls & partitions	2‑4 mm
	Outdoor curtain walls & partitions	4‑6 mm
	Small‑size canopies & sunshades	4‑6 mm
	Medium‑size canopies & sunshades	6‑8 mm
	Large‑size canopies & sunshades	8‑10 mm
Advertising & display	Indoor light boxes	1‑3 mm
	Outdoor light boxes	3‑5 mm
	Small‑size signboards & notice boards	2‑4 mm
	Large‑size signboards & notice boards	4‑6 mm
Industrial & safety protection	Small‑size machine guards	4‑6 mm
	Medium‑size machine guards	6‑8 mm
	Large‑size machine guards	8‑10 mm
	Bullet‑resistant glazing	>12 mm
	Riot shields	8‑12 mm
Transportation	Motorcycle windshields	3‑5 mm
	Automobile windshields for special vehicles	5‑8 mm
	Special‑vehicle windshields	8‑10 mm
	Subway facilities	4‑6 mm
	Station facilities	6‑8 mm
Sound‑insulation applications	Highway noise barriers	8‑12 mm
	Indoor sound‑insulating partitions	4‑6 mm
	Outdoor sound‑insulating partitions	6‑8 mm
	Industrial noise‑control projects	6‑10 mm
Agriculture & horticulture	Small‑size agricultural greenhouses	4‑6 mm
	Medium‑size agricultural greenhouses	6‑8 mm
	Large‑size agricultural greenhouses	8‑10 mm
	Plant‑growth chambers	3‑4 mm

7. Latest Trends and Innovations for Polycarbonate Sheet Applications

7.1 Sustainable‑development and Eco‑friendly Applications

Recycled‑material applications

• Recycled polycarbonate sheet: EU standards drive recycled‑PC content to reach 27% by 2025. The Middle East market sees a 12% annual growth rate, mainly applied in eco‑friendly building projects.
• Recyclable design: New‑generation polycarbonate sheet features enhanced recyclability for easier material recovery.

Energy‑saving buildings

• Energy‑efficient daylighting systems: Thermal‑insulation coefficient of innovative polycarbonate sheet ranges from 1.7‑3.8 W/(㎡·K), improving building energy efficiency.
• Smart dimmable polycarbonate sheet: Automatically adjusts light transmittance according to ambient brightness to optimize indoor illumination.

7.2 Intelligent and Functional Polycarbonate Sheet

Smart polycarbonate sheet

• Self‑cleaning polycarbonate sheet: Special surface treatment reduces maintenance workload.
• Photo‑/thermo‑chromic polycarbonate sheet: Changes colour responding to light or temperature for smart‑building and dynamic‑decoration purposes.
• Conductive polycarbonate sheet: Possesses electrical conductivity for special electronic equipment and sensor components.

Functional surface treatments

• Anti‑condensation polycarbonate sheet: Anti‑fog surface treatment for high‑humidity environments.
• Anti‑static polycarbonate sheet: For electronics‑industry and clean‑room environments.
• Antimicrobial polycarbonate sheet: Surface antimicrobial finish for medical‑facility and food‑processing environments.

7.3 Cross‑border Applications and Innovative Designs

Artistic and design fields

• Art installations: Ultra‑thin polycarbonate sheet combined with lighting delivers unique visual effects for art installations.
• Architectural decoration: Coloured and textured polycarbonate sheet enriches visual performance of building facades.
• Furniture design: Polycarbonate sheet is adopted in high‑end furniture to realise distinctive styling through light‑transmission and strength properties.

Emerging‑sector applications

• Photovoltaic‑module components: Polycarbonate sheet serves as protective layers and shading structures for solar‑PV assemblies to boost efficiency and service life.
• 3D‑printing feedstock: Polycarbonate sheet‑derived material for 3D‑printing complex functional parts.
• Aerospace applications: High‑performance polycarbonate sheet for aircraft interior trim and spacecraft viewing windows.

8. Selection and Implementation Recommendations for Polycarbonate Sheet Projects

8.1 Selection Advice for Different Application Scenarios

Building daylighting projects

• Small‑size daylighting roofs: 4‑6 mm general‑purpose or UV‑protected polycarbonate sheet.
• Medium‑size daylighting roofs: 6‑8 mm UV‑protected polycarbonate sheet.
• Large‑size daylighting roofs: 8‑12 mm UV‑protected polycarbonate sheet with reinforced structural framing.

Advertising and display projects

• Indoor advertising light boxes: 1‑3 mm general‑purpose polycarbonate sheet.
• Outdoor advertising light boxes: 3‑5 mm UV‑protected polycarbonate sheet.
• Large‑size billboards: 5‑8 mm UV‑protected polycarbonate sheet with strengthened edge finishing.

Industrial and safety‑protection projects

• Ordinary machine‑protection applications: 4‑6 mm general‑purpose polycarbonate sheet.
• High‑safety‑requirement locations: 8‑12 mm flame‑retardant polycarbonate sheet.
• Bullet‑resistant applications: Specially processed polycarbonate sheet above 12 mm.

Sound‑insulation projects

• Road noise‑barrier projects: 8‑12 mm sound‑insulating polycarbonate sheet.
• Indoor building sound‑insulation: 4‑6 mm sound‑insulating polycarbonate sheet.
• High‑standard acoustic‑environment projects: 10‑12 mm sound‑insulating polycarbonate sheet plus specialised structural design.

8.2 Installation and Maintenance Notes

Installation precautions

• Reserve thermal‑expansion & cold‑contraction gaps: Leave 5 mm gap per metre to avoid panel deformation caused by temperature variation.
• Adopt proper sealing materials: Use PC‑specialised sealants; avoid acidic or alkaline sealants.
• Drilling and fastening: Drill holes 4 mm larger than screw diameter to release stress induced by thermal expansion and contraction.

Maintenance suggestions

• Periodic cleaning: Use neutral detergent plus soft cloth; refrain from abrasive agents and organic solvents.
• Prevent surface scratches: Keep sharp objects away during cleaning to preserve light‑transmission performance.
• Regular inspection: Check installation status periodically and repair loose or damaged components timely.

8.3 Future‑development Trends and Application Prospects

Market growth

Market‑related Item	Data
Global polycarbonate multi‑wall‑sheet market size (2025 forecast)	USD 4.5 billion
Compound annual growth rate	Approximately 6.8%
Asia‑Pacific regional consumption share	58% (driven by infrastructure construction in China, India and Southeast Asia)
Annual demand‑growth rate in the Middle East	12% (driven by smart‑greenhouse boom)

Material‑technology innovation
Material innovations improve weather resistance, flame retardancy and optical performance to extend service life. More precise extrusion and surface‑treatment technologies enhance panel quality and performance.

Application expansion
Application boundaries keep expanding in smart agriculture, eco‑friendly architecture and renewable‑energy sectors. Cross‑disciplinary integration with other materials and technologies brings more innovative solutions.

9. Summary and Outlook

As a high‑performance engineering material, Polycarbonate Sheet has extremely broad application coverage spanning building daylighting, industrial protection, transportation infrastructure, acoustic engineering, agricultural greenhouses and outdoor advertising.

When selecting Polycarbonate Sheet, comprehensively consider thickness grade, material type (general‑purpose, flame‑retardant, sound‑insulating, UV‑protected) and special functional features (anti‑condensation, anti‑static, antimicrobial etc.) according to on‑site requirements. Appropriate material selection plus standardised installation can maximise its advantages in safety, functionality and cost‑effectiveness.

Driven by advances in material science and manufacturing techniques, Polycarbonate Sheet will develop toward higher recyclability, intelligence and multi‑functionality and deliver innovative solutions for diverse industries. For designers, mastering the application possibilities of Polycarbonate Sheet inspires creative project design and helps build safer, more comfortable and more sustainable built environments.

To sum up, with outstanding comprehensive performance and diverse uses, Polycarbonate Sheet has become an indispensable material in modern architecture and industry and continues to add value to living and working environments.
